ALD (PEALD)

Process Results : Al2O3 PEALD

페이지 정보

본문

• Wafer Size : 8” Si

• Wafer Non-Uniformity < 2%

Sample

Exp. condition

Thick Maps

Results

A

TMA 0.3초,

Ar purge 7초,

RF 1초



th : 12.4nm

NU% 1.99

n : 1.6774

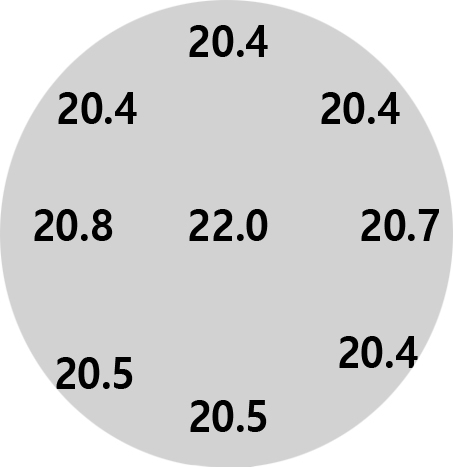

B

TMA 0.7 s,

Ar purge 10s,

O2(2s) RF 1s,

100Cycles


Temp.=100c



th : 22.2nm,

NU% 3.77

n : 1.8282
